Compensated Sensors
These calibrated and temperature compensated sensors provide a stable mV output over a wide temperature range. This means that the sensors can be integrated easily and quick into the customer application.

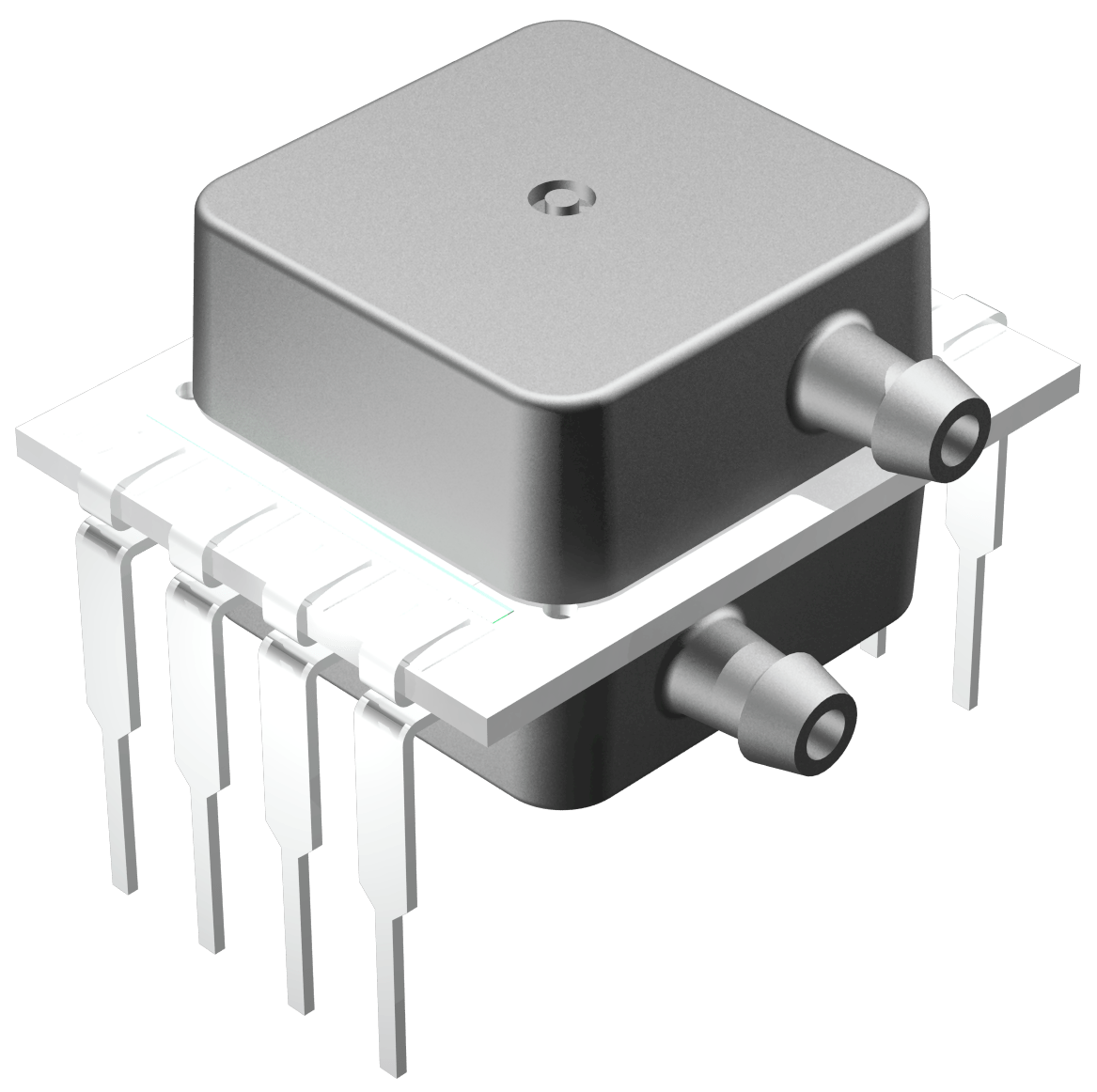

MDCX-Series
This mV-sensor is available in SIL and DIL versions and is perfectly suited for HVAC applications thanks to its dual chip technology and adapted volume of pressure connections.
Supply voltage typ. 12 volts
1 to 30"H2O (2,5 - 75mbar)

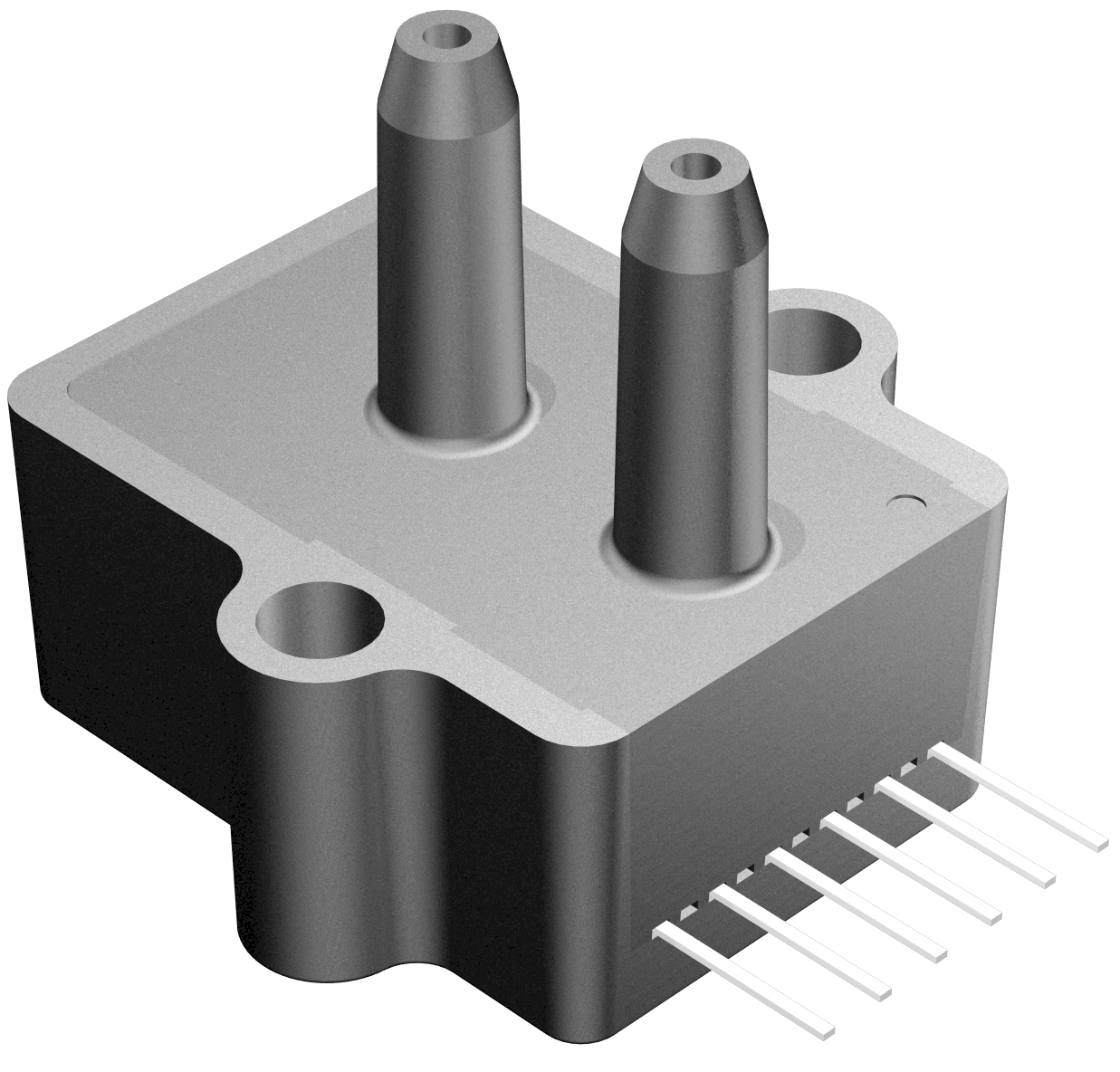

ACPC-Series
Single-Chip Sensor für einen weiten Druckbereich bei höchsten Genauigkeiten.
Versorgungsspannung typ. 12 Volt
4"H2O - 100psi (10mbar - 7bar)
MLV-Series
Like many of our other pressure sensors, these sensors can be provided with a parylene coating, which, together with their low power consumption and improved front-to-back linearity, makes them ideal for ventilators.
Supply voltage typ. 5 volts
5V, 1 "H2O ... 150psi (2,5mbar - 10bar)
AXCX-Series
This compensated sensor delivers linearity of up to 0.25% with excellent stability. Ideal for environmental monitoring due to its design.
Supply voltage typ. 12 volts
2 "H2O to 150psi (5mbar - 10bar)
