Digital Sensors

In addition to sensors with a purely digital I2C or SPI output signal, All Sensors also offers a sensor which can output an analogue signal in addition to the digital one. The sensors are extremely accurate and provide complete digital compensation.

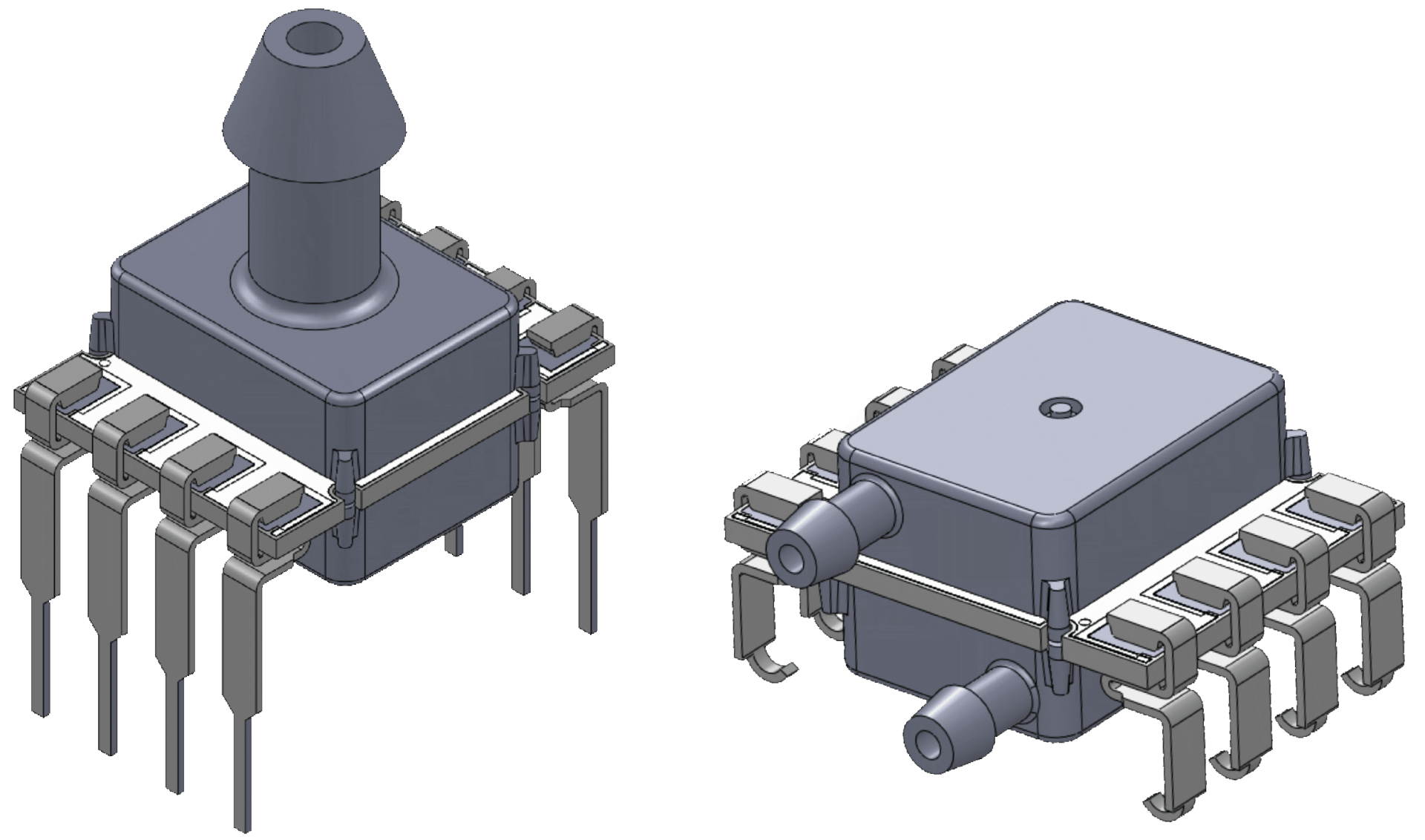

ELV-Series

The ELV series gives design engineers outstanding flexibility with the variety of choices in package combination. The digital interface eases integration of the sensors into a wide range of process control and measurement systems, allowing direct connection to serial communications channels.
3.0V, 3.3V or 5.0V supply voltage
0.5 inH2O to 150psi (2.5mbar to 10bar)
More Information

DLV-Series

Sensor with a very fast response time and a resolution of 14bit output. Due to its barometric pressure ranges it is well suited for applications in meteorology.
3.3V or 5V supply voltage
5 to 60 PSI (1mbar - 150mbar)
More Information

DLVR-Series

With dual-die technology, fast response time and excellent accuracy over a wide temperature range, the DLVR is the ideal sensor for HVAC applications.
3.3V or 5V supply voltage
5 to 60 PSI (1mbar - 150mbar)
More Information

DLH-Series

With a resolution of up to 24bit, the DLH delivers outstanding resolution and requires only very low supply voltages.
1.68V to 3.6V supply voltage
5 to 60 "H2O (12.5mbar - 150mbar)
More Information

DLHR-Series

The DLHR combines the advantages of extremely stable Dual-Die technology with an excellent resolution of 24bit. For use in humid environments, a parylene coating can be applied.
1.68V to 3.6V supply voltage
0.5 to 60 "H2O (1.2mbar - 150mbar)
More Information

DLC-Series

This compact sensor provides a stable, high resolution output for all price sensitive applications.
1.8 to 3.6V supply voltage
1"H2O up to 150 PSI (2.5mbar - 10mbar)
More Information

DLLR-Series

As an extension of our DLHR series, the DLLR offers outstanding accuracy over a wide temperature range due to the possibility of additional external compensation.
1.68V to 3.6V supply voltage
10 and 30 "H2O (25mbar - 75mbar)
More Information

ELVR-Series

Its ability to deliver both analog and digital (I2C / SPI) output makes this compact sensor suitable for a wide range of industrial and medical applications.
3V or 5V option supply voltage
0.5 to 60 "H2O (2.5 - 75 mbar)
More Information
